Weaving System

3D pile weaving solution for carpet and space fabric

[ Size:L M L ]Data:2021-6-19 Edit: Hits:1665

Model:YTD22 Jacquard Loom
Working Width:2000mm-4500mm
Weft Insertion:Double rapier system with take-over on top
Color Selection:2/4/6/8
Warp Density:300-680 reeds/m
Speed:2x300rpm, Max weft beat 1500m/min
Shedding:3-position Jacquard machine,upto 12288 threads
Ground Warp:E-dobby with 12 harness frames Max. (or 8 frames with Cam dobby for your choice)
Machine Control:Central CPU control with touch panel in both Chinese and English
Warp Let-off/Weft Adjust:Servo motor
Warp Beam:2xΦ1000mm(Ground Warp)
Creel(Pile Warp Let off):Acording to Customer

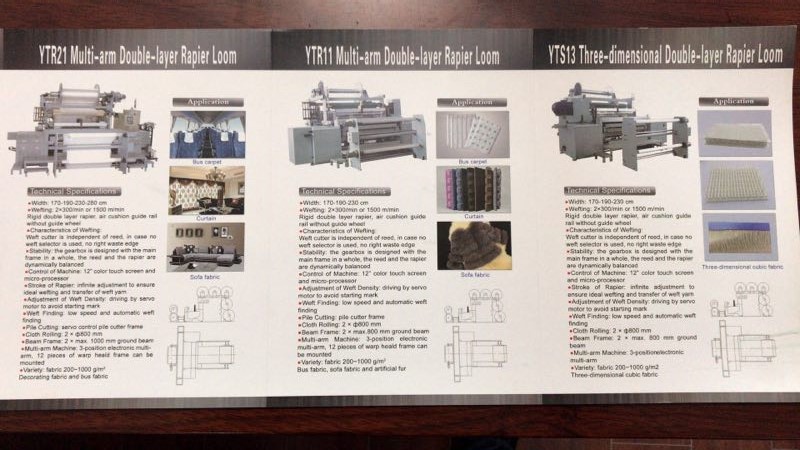

Twin Rapier Velvet weaving machine YTS13 160cm with Fabric taking up roller and Warping beam
Business Contact : Mr. Cody  Email: wytex80@163.com, Mobile:+86 13004383037
Incoterm:FOB Shanghai
Payment term:30% T/T in advance, 70% irrevocable L/C at sight
Delivery:4 months after advance payment received  , 2sets one month
Installation:YT will arrange technicians for machine set-up & control run,Customer pay for air tickets,hotel,food and local transportation,Customer site operators and yarn materials should be ready in advance
HS Code:8446302000
Technical Description and scope of supply

1,Machine type:YTS13
Twin rapiers loom for the production of glass fiber sapce fabric.
Working width : 160cm
Reeds:after discussed with customers


2,Dobby ,weaving frame and picks
3 positions dobby device with 8 ground frames ,4 pile frames


3,Running speed: 160rpm
(different speed in case of different raw material or pattern)

4,Warp beam surport available by seller

5,Yarn let-off device
Electronic yarn let-off,  with selvedge jacquard write weaving

6,Motion control
Machine control computer for the control of the basic function such as main drive,yarn feeding and
fabric take-up.Operate interface:10" color touch panel for production data display.

7,Supply frequence&voltage,customer nominal voltage 380v,50 Hz(cycles),Should the different electrical
data please indicate it when signing the agreement.
Rated power 7.5kw

8,Space adjustable from 1mm to 60mm but not available in one machine
YTS13A for 1-15mm , YTS13B for 15-60mm  for your choice
