Spunbond&Meltblown

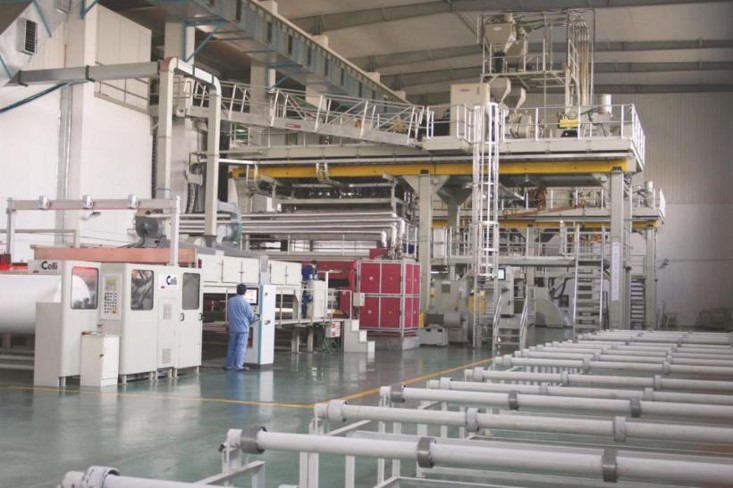

2.4m PET Spunbond nonwoven production line offer

[ Size:L M L ]Data:2021-6-25 Edit: Hits:1938

Sale Contact : Mr. Cody  +86 13004383037   Email: wytex80@163.com


1. Production process flow information
1) technology of "slit die spinning " negative pressure
2)Process flow: PET chips feed - drying system (water content is less than 50 PPM, per hour up to 400-500 kg/h) draft - feeding lifting platform (dry) - melt extrusion - filter - measuring - spinning - cooling - draft - nonwoven web forming - hot roller reinforced - slitting and winding
Main process parameters

2. The spinning
A. Feeding system
Feeding capacity of main material: 600KG/H,Storage hopper volume: 5 cubic meters,Drying system (continuous) : 400-500kg/h, electric heating drying water content within 40ppm

B. Screw extruder, motor power 90KW
Screw direct: 135mm,Screw speed: 20-75rpm,Length to diameter ratio: 24:1,Screw heating zone: 6 zone (heating system: 60KW)

C. Masterbatch small screw
Screw direct: 30mm,Screw speed: 0-22rpm,Motor power: 0.37KW,Equipped with 0.1 cubic small storage hopper

D. Melt filter
precision: 40UM 3.2 cubic meters

E. metering pump
Supply 250CC/R 1 Huaxi Pump

F. One set spinning die,Spinning die oil heating 48KW furnace motor 5.5KW,spinneret hole number: about 5500 holes,Diameter of hole: 0.30mm,Component form, tow number, module spacing design contact

G. Side blowing aluminum alloy 5mm,500*2500mm,Maximum air supply: 5000 cubic meters/hour,Cooling air temperature: 15-35℃/h,Suction air power: 132KW,Maximum suction air: 30000m3/h,Drafting fan power is about 275KW,Drafting air volume: 64m3/h pressure: 3kg

H.1 set monomer exhaust device

3.Fibre web forming m/c
Include conveyor drivng, suction duct, rectifying device, tensioning device, airflow device and rack with a speed of 100m/min

4.Double roller calender m/c
It is special for PET thermal bonding which consists of double smooth shaping steel rollers, cooling rod, arc roller and outlet arranged from top to bottom, The distribution guide roller, roller spacing adjusting device, transmission system, hot oil heating circulation system, bearing cooling lubrication system and rack, etc. two The shaping rollers share a heating oil furnace and circulation system, and are connected with the shaping rollers through hot oil pipes and rotary joints. Up and down shaping roller spacing through the motor drives the worm gear and worm gear to adjust within the range of 0-50mm. The shaping roller adopts single roller independent motor, hard tooth surface reducer and universal joint transmission move. Two cooling rollers are driven by a motor and reduction gear. Control and execution system into the PLC central control system, accurate control, realize the synchronous linkage with the network laying machine and automatic edge cutting and winding machine, the setting and display of operating parameters through the touch screen.
1) Model: 2400
2) Product range: 15-150g/m2
3) steel roll length: 2800mm
4) Width: 2400mm
5) Mechanical speed: 150m /min
6) Production speed: 15-120 m/min
7) Steel roll specification Ø500×2800
8) Maximum operating temperature: 260℃
9) Temperature control accuracy of oil return point: ≤±3℃
10) Number of cooling rollers: 2
11) Cooling method: water cooling
12) Installed power: 89KW (approx.)

5.Winder(with automatic measurement and length determination, automatic cutting, automatic winding)
Mechanical speed: 5-100m/min
Paper tube inner diameter: 76mm-120mm
Maximum roll diameter: 1000mm
On line fabric slitting (knives quantity based on customers)

6.The following auxiliary equipment and utility equipment shall be provided by the seller according to the technical requirements and purchased or manufactured by the buyer himself or by the buyer.

6.1 Component preparation device
1) Vacuum calcining furnace
2) Automatic high-pressure cleaning machine
3) Automatic checker 4) component preheating furnace

6.2 Equipment for physical inspection and testing
1) fabric strength meter
2) fabric thickness meter
3) Disc sampler
4) Electronic balance
5) Differential pressure moisture meter
6) Oven
7) Laboratory glassware

6.3 Air conditioning equipment
1) Side blowing air conditioning unit
2) net laying machine suction fan

6.4 Utility equipment
1) Complete set of equipment for air compressor station: large and small air compressors, cold and dry machines, filters, storage tanks, etc
2) Refrigerating station complete set of equipment: water chiller
3) Complete set of equipment for the pumping station: chilled water circulating pump, cooling water circulating pump, cooling water tower, etc
