Warp Knitting

KW720-S Split Warping M/C Offer

[ Size:L M L ]Data:2021-6-25 Edit: Hits:1632

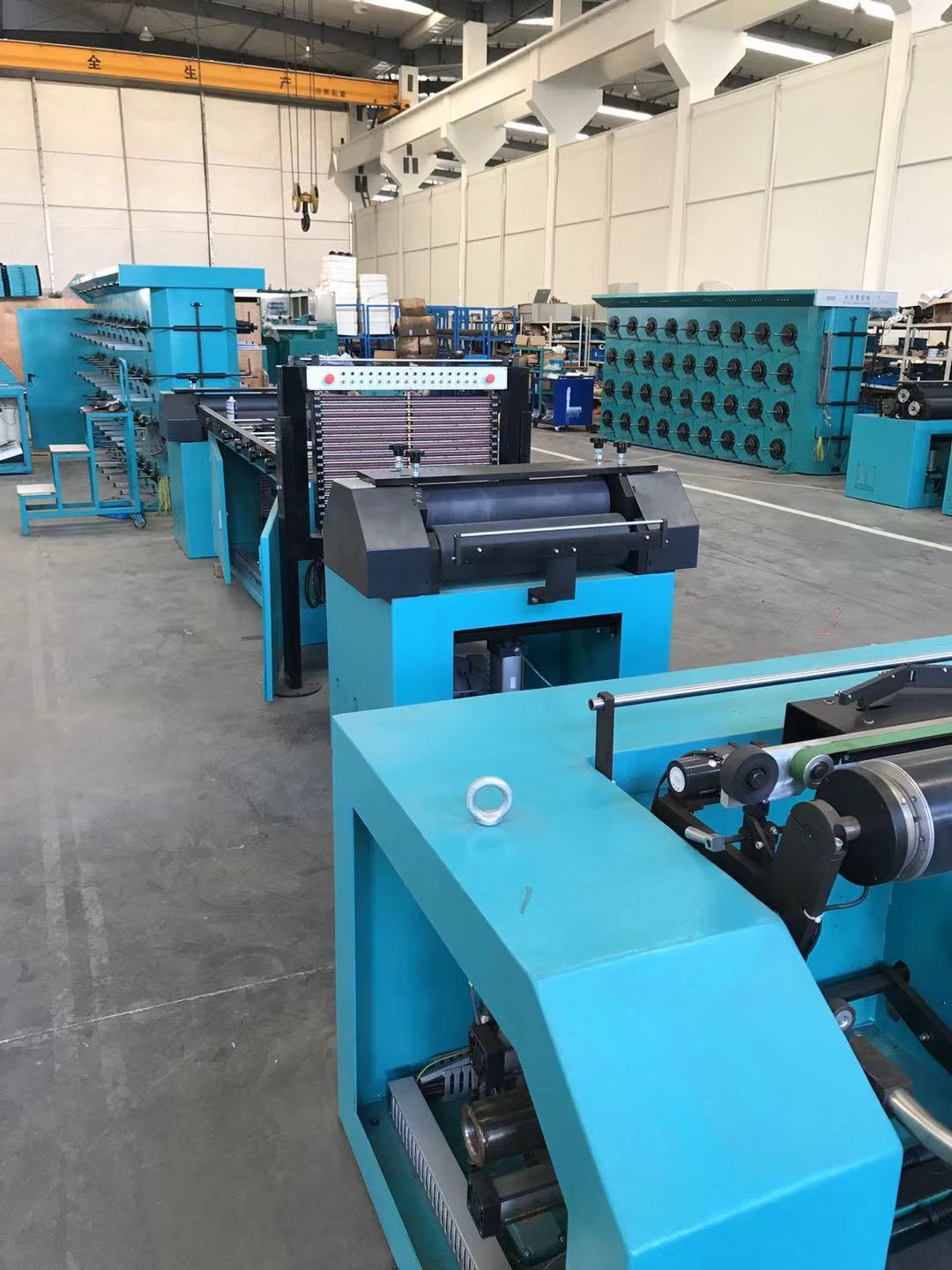

Project Name:KW720-S Split Warping M/C

For Nylon or PET master filament split warping.380V50Hz,Room request 20-30°C
1/Price:USD51500 EXW term,exchange rate 1:6.45 (RMB)
2/shipment:by vessel or customer request way
3/delivery time:70days
4/The machine has equipment of oiler, pneumatic yarn storage, fluff detector, dropper stop motion, pneumatic beam put-on and take-off,pneumatic breaker, and sticker board. It is full function and safety enough.Yarn storage device with 9 m back-winding capacity to allow control of the last 9 m of warp sheet on the beam.
5/HS Code 8445901000
Specifiation
1.beam size:21” or 30”
2.warping speed:0-700m/min
3.Main components of  head warper include word buckle, yarn automatic adhesive, speed  roller, brake, bracket.
4.Tension:2 sets each consists of 3 group pressure rollers.
5.The yarn pressing device mainly consists of four layers of yarn cover.
6.Drop type yarn broken stop device
7.creels: 72 cones max
8.Braking distance: 600 m/min < 2 m
9.Install power:17kw
10.The inner diameter of the cone is 94mm, 112mm, 120mm, 124mm.

Schneider inverter, Omron programmable, Airtac dynamic components, Siemens motor.

Contact:Mr Cody | Vice President | Mobile:0086 13004383037
