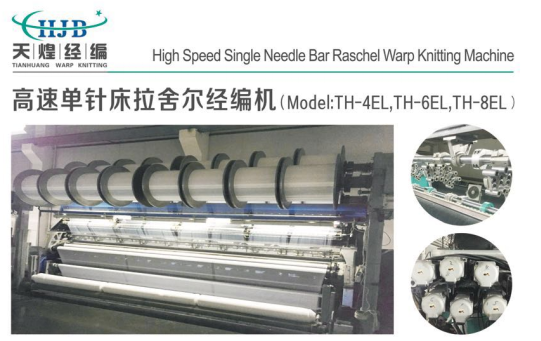

6 bars raschel warp knitting machine for lace and tulle production
The huge variety of modern knitting fabric requires attention to be focused on different aspects and certain specific conditions during production.Therefore TH offers the possibility for elastic optional warp knitting machines TH6EL.
• High-performance Raschel machines with a high versatility of products
• An extended range of patterns and articles
• Highest operational reliability
• Long service life
Working width：130" 200" 260" gauge：E24
Total 6 bars:2 stitch bars,6 inlay bars(include 2 for spandex)
Electronic yarn let-off (6 axials EBC),fabric take-up(1 axial electronic),winding(1 axial electronic)
Pattern drive:all 6 bars electronic drive EL,the servo motor brand Tamagawa Seiki Japan
Bars/Knitting elements：Magnesium alloy compound needle bar, closure bar,knock over ,stitch comb bar, guide needle bar/needle brand,Groz,SAXONIA and Top china
Warp Beam Support:21”or 30”
Electronic System: By BUYUN Tech, total load 50kw
Price FOB Shanghai: USD97200 /set (exchange rate 1:6.38)
Payment: 30% by T/T for order ,70% by T/T before shipment
Installment: by TH but all cost by Customer such as return air tickets,food and hotel as well as daily pocket fee 100USD one technician.
Dimension:7500mm width x 4000mm depth x 3600mm height (200")
Business Contact : Mr. Cody Email: wytex80@163.com, Mobile:+86 13004383037
